Make a Cool Shiny Satin Metal Emblem

For this free Photoshop tutorial we will learn how to convert a simple clip art image of a dragon into a very cool looking metallic emblem with a smooth shiny satin finish. We will learn how to use Layer Styles to create the necessary lighting effects that make a surface look polished and metallic. The techniques we'll be learning can be applied to any type of image from clip art or other sources. This is an easy tutorial that anyone who understands how the basic tools in Photoshop work can follow along with, and it creates a very impressive and stunning result. As with all the tutorials here, no drawing or artistic skills are required, so anyone can join in and have fun creating some great looking images. Ready to get started?

Here's what our final product will look when we're done:

Keywords:

metal, shiny, satin, smooth finish, polished surface, embossed design, lighting effects, emblem, medallion

Features Used:

Magic Wand, Save Selection, Layers, Fill, Layer Styles, Gradient Overlay, Satin, Bevel and Emboss, Inner Shadow, Drop Shadow, Gaussian Blur, Paint Brush

Corel.com

Easy Updates 120x90



1

First choose the image you want to work with. Any type of image or photo that can be turned into a recognizable silhouette can be used. The color of the image doesn't matter since we're only going to be using the outline of the image to create our metal emblem. For obvious reasons, I of course chose a dragon which I found in a collection of clip art images I have.

Here's the clip art image I'm starting with. If you're a Mac user, you can simply drag the image from your browser and drop it onto the Photoshop icon in your dock to open it in Photoshop. If your browser or operating system don't support that, click the link below to download a copy.

Download this image now.

2

Most clip art is distributed as a gif or png file just as the one above. These store images in the "indexed color" mode which generally limits them to 256 colors. This is done to reduce the file size without losing image quality for images that have very limited colors in them. For our work, we'll need many colors than that, so convert the image to the RGB color mode by selecting that option from the Image > Mode menu as shown here. Note that you can tell an image is in indexed color mode because Photoshop adds the word "Index" to the title bar on the image window and also has "Indexed Color" checked in the menu as we see here.

Generally, any time you open an indexed color image in Photoshop, you'll immediately want to convert it to RGB mode. Not only does this get you more colors to work with, but many of Photoshop's essential features, such as layers, are not available for indexed color images.

3

In order to apply a Layer Style to an image, which is how we're going to achieve some of our effects in this tutorial, the image needs to be separated from the background and isolated on its own layer with transparent pixels where the background used to be. This is because Layer Styles work mostly on the edges of the image, so the image needs to be isolated with transparent pixels around it so Photoshop knows where the edges are. Fortunately, when dealing with black and white clip art, this is easy to do.

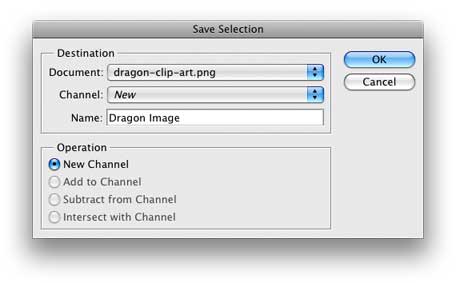

First, select the Magic Wand tool or press the keyboard shortcut key w. Set the Tolerance to about 50 and make sure that the Contiguous option is unchecked. Now click somewhere in the middle a black region of the image. The wand should then select all the black regions in the image. We're going to use this selection a couple of times, so let's save it. Choose Select > Save Selection from the menu and let's name it "Dragon Image". Make sure the options to create a new channel are selected as shown here:

Before we go on, we'll want to deselect the dragon image by pressing Cmd-D (control-D on Windows).

4

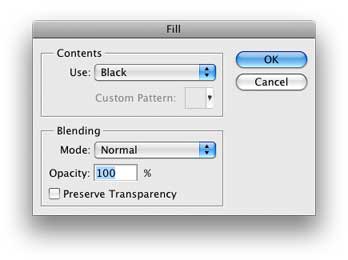

Let's get our background in place next. Click on the New Layer icon at the bottom of the Layers palette, then double-click on the layer name and type in "Black" so we can keep track of our layers. Make sure this layer is selected and highlighted in the palette so Photoshop knows which layer we want to draw into, then select Edit > Fill and use these settings to fill the layer with solid black:

5

Next we'll get our image set up on its own layer. Create another new layer above the Black layer and we'll name this one "Dragon". Now bring back the selection we saved in Step 3 by choosing Select > Load Selection and selecting the channel we created previously as so:

Now fill it in using Edit > Fill. This time use White for the Contents. The color actually doesn't matter since we're going to replace all the color in this layer with a Layer Style. We'll just use white for now so we can see the image on the black background.

At this point, your Layers Palette should look like this:

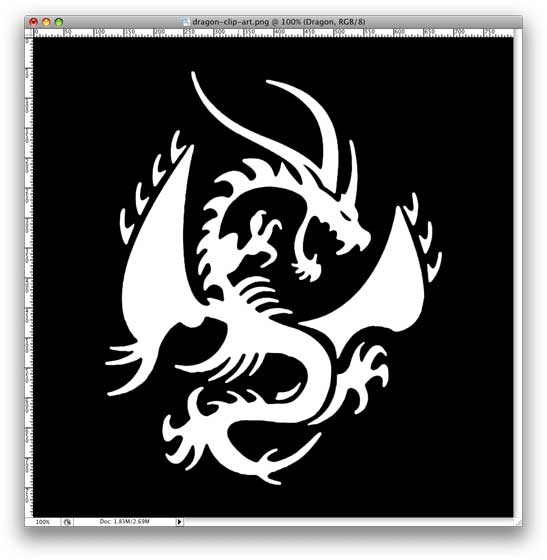

And your image should look like this:






6

Now we'll add a set of Layer Styles to convert this flat piece of clip art into a metallic looking emblem or medallion that has a three dimensional look. We'll use a number of different settings which simulate the look of different lighting effects on metal objects.

The first thing we'll do is to replace the color in the layer using a Gradient Overlay. When the opacity is set to 100% as we have done here, the overlay completely covers all the colors in the layer. This is why it didn't matter what color we used when we initially filled the layer. With the angle set to 90 degrees, the gradient will create a top to bottom lighting effect for us that is one component of how light reflects off metal surfaces. If you look at real metal surfaces, the light reflected off of then is pretty much always uneven, so the gradient helps re-create that look. This is especially true of polished surfaces that have a satin finish. Also, by creating a sense that the light is stronger at the top than it is at the bottom, it helps sell the illusion that the emblem is three dimensional.

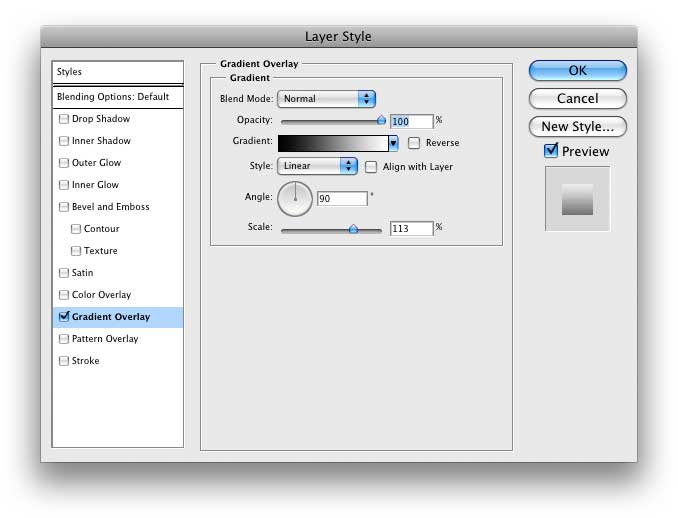

To get started setting the Layer Style, select Layer > Layer Style > Gradient Overlay, or you can double click the Dragon layer in the Layers palette as a shortcut to opening the Layer Styles dialog. Here are the settings to use:

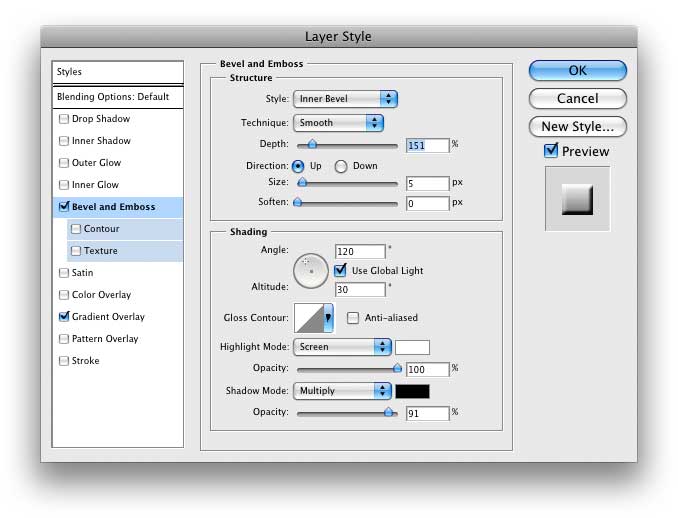

The Bevel and Emboss style is next which rounds off the edges and gives the illusion of a light source coming from the upper left. This will help make the emblem stand out from the background:

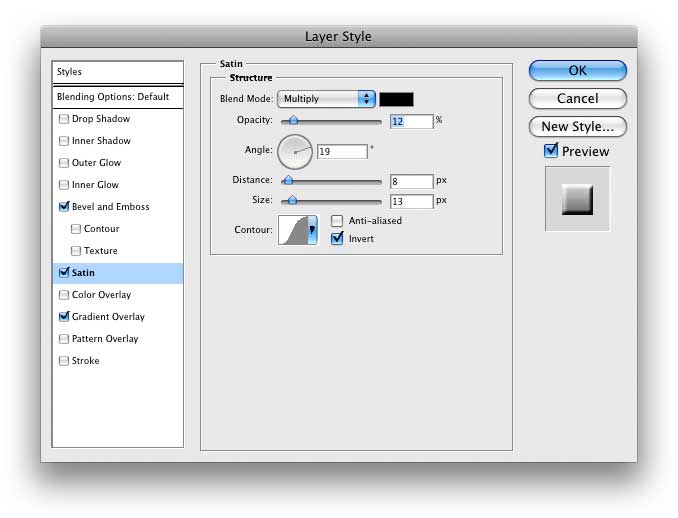

We'll add the Satin settings next. This creates an additional tone in the center portions of the image but leaves the edges alone. This helps create the look of a smooth, satin surface to the metal. Try these settings and note that the color in the Structure section is pure black:

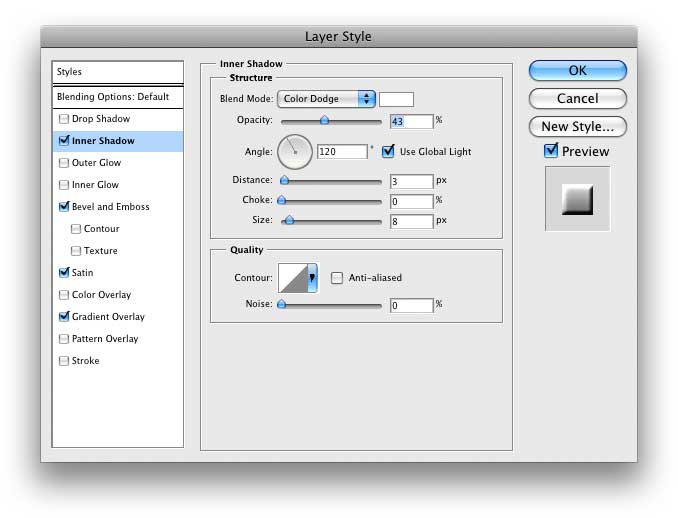

Lastly, we'll add an Inner Shadow. By setting the color to white, we'll use this style to add an additional highlight to the emblem/medallion, enhancing the effect of a light shining off the surface of the metal. Highlights and shadows are important when re-creating the look of any surface in Photoshop. Be sure to set the color in the Structure section below to pure white.

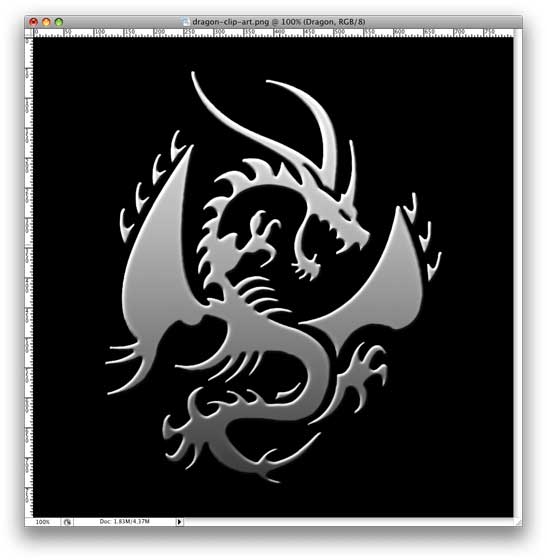

At this point, we have created some nice lighting effects and our metallic dragon emblem should look like this:

Great Big Canvas


Barnes & Noble Deal of the Day



7

Our smooth metallic dragon emblem looks pretty good at this point, but it would look even better with some color to make a dramatic effect. We'll do that by adding a red misty glow underneath the dragon. We want a new layer for that of course, so first click the Black layer in the Layers palette, then click the new layer icon . This will create a new layer just above the selected layer. We'll name this layer "Red Glow". Your Layers palette should look as shown to the right. Make sure the Red Glow layer is selected because we want to draw in that layer next.

8

For the glow, I want it to follow the shape of the dragon, so we'll use the selection of the image we created back in Step 3 as a template for the glow. So let's reload that selection again using Select > Load Selection as we did back in Step 5. I want the glow to be bigger than the dragon itself and have the edges fade into the background. We'll accomplish that effect by first expanding the selection. So use Select > Expand and expand by 10 pixels.

Now set the foreground color to a nice intense shade of red. I used color #e80000. Select the Paint Bucket tool and click within the selected area. Deselect by typing Cmd-D (control-D on Windows).

To feather it out and give it a misty look, we'll apply Filter > Blur > Gaussian Blur. Use a radius of 20 pixels.

Lastly, I dialed the opacity of this layer down to 82% to fade it into the background a little more so that the red wouldn't distract from the dragon itself.

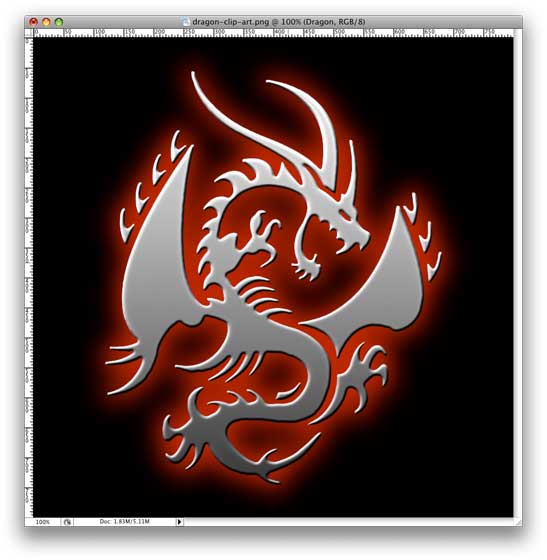

Here's what we have at this point:



9

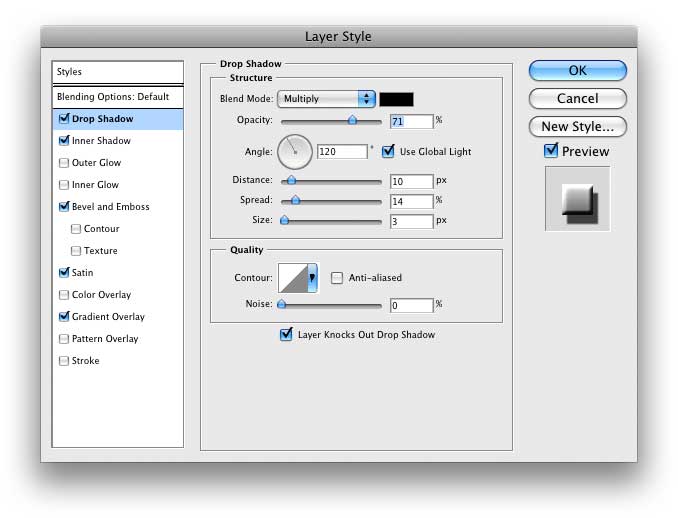

I'd like to make the dragon stand out more from the red on the background and make the whole image more three dimensional. We'll do that by adding a Drop Shadow to the dragon image. So double-click the Dragon layer in the Layers palette to open the Layer Styles dialog for that layer again and make these settings:

10

As a last little touch, I want to make the dragon's eye glow bright red. We'll just paint this in by hand, and since the eye is so small, let's zoom in on it to make it easier to paint just what we want. Select the Zoom Tool or press z. Click and drag a small square around the dragon's eye and Photoshop will zoom in on that area.

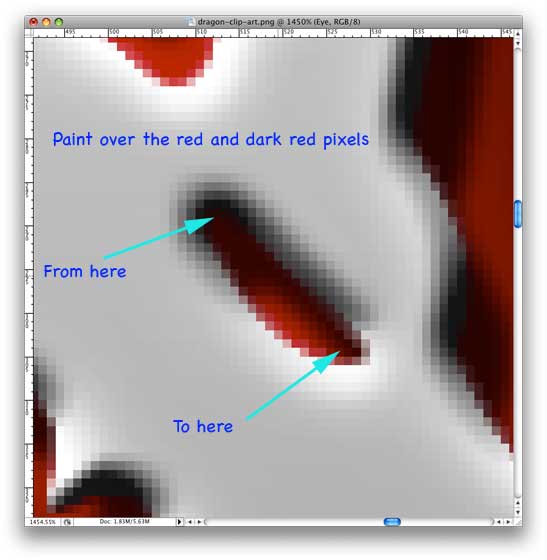

We want the paint for the eye to be on top of everything else, so select the Dragon layer in the Layers palette and click the New Layer icon to create a new layer above it. Name it "Eye". Now select the Paint Brush Tool and choose a round brush with diameter 3 pixels and 100% hardness. The foreground color should still be set to the red we used in Step 8. Now we want to paint over the inner section of the eye, but don't paint over the gray pixels around the edges of the eye since that will ruin the bevel and shadow effects. Paint the area shown here:

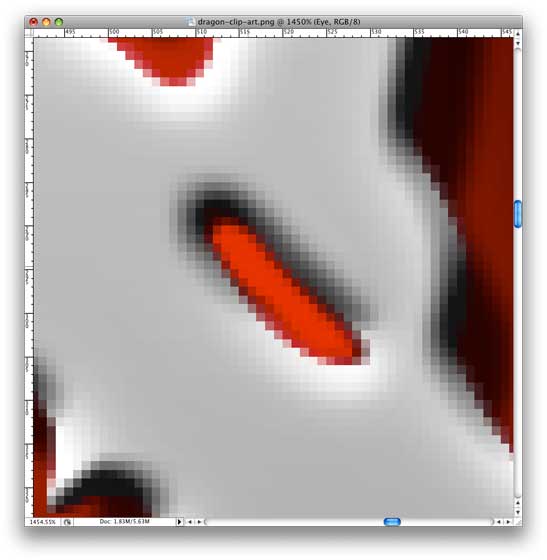

When you're done painting, it should look something like this:

Now return to 100% normal size by double-clicking the Zoom Tool icon and we can see that we have a nice intense looking eye that doesn't interfere with the effects we added in previous steps.

Our smooth satin finish metallic dragon emblem is now complete:
